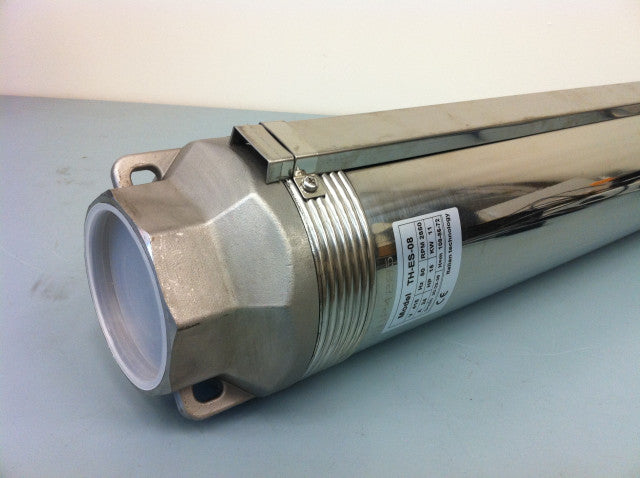

6" 11KW 415V Submersible Bore Pump ES-08 & Free Delivery

6" 11KW 415V Submersible Bore Pump ES-08 & Free Delivery

Regular price $2,480.00 AUD
Regular price Sale price $2,480.00 AUD
Sale Sold out
 More payment options

Submersible bore pump package includes -15HP 415V/50Hz motor, ES-08 pump and 15HP auto pump control box.

All three-phase submersible bore pumps comes standard with auto control box. It can be used with or without the control box.

The three phase control box is built in current and voltage gauges, 6 water sensors to detect bore or water tank water level.

  • Power: 15HP/11KW
  • Model: ES-8
  • Voltage: 3 Phase 415V/50Hz
  • Current: 24A
  • Max Head: 120m
  • Max Flow: 633L/min or 38,000L/h
  • Inlet/Outlet: 3"
  • Weight: 88Kg
  • Mtr & Pump Dimension:      1625mm x 150mm
  • Pump Cable: 2m
  • Warranty: 12 months return to base warranty in Australia.

Pump Specifications:

  • Is suitable for a 6"/150mm or large bore well (this pump actual diameter is 150mm).
  • Designed use for clear water farm irrigation or water supplier.
  • It is suited for very large water flow and deep bore.
  • Bore pump best performance are from 20m to 110m deep.
  • Max delivery: 38,000L/h water at 72m.
Head             L/Min
115m               200L
108m              333L
102m             400L
98m               433L
86m               533L

79m               583L
15-78m          633L

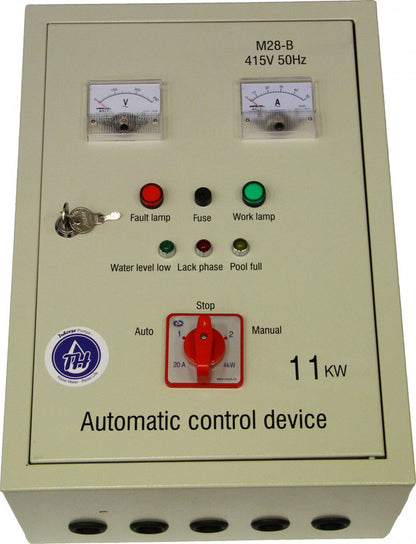

Pump Auto Control
Box

3 Phase Pump Control Box
