3" 500W Solar Submersible Pump with 400W Solar Panel with 40m Cable Package & Free Delivery

3" 500W Solar Submersible Pump with 400W Solar Panel with 40m Cable Package & Free Delivery

$2,200.00 AUD
$2,200.00 AUD
Sale Sold out

3" 500W Solar Submersible Pump with 400W Solar Panel with 40m cable Package & Free Delivery.

This solar pump package is suitable for bore hole from 10m-40m. Daily water flow base on 6-8 hours sun per day in winter and 8-10 hours in summer.

This solar pump is suitable for 3" or large bore. It is used for pumping water from the rivers, dams, creeks and springs and to transfer water from one site to another. It is easy to install, all plug and go and cost nothing to run after installation. This helical rotor pumps do not require expensive converters and batteries to operate, however the controller will allow the use of storage batteries if required.

NOTE: You have to get below items locally: (package does not include the following)

  1. A stainless-steel wire (called safety cable) to hold pump in bore. If pump water from dam or river. A float set up is required.
  2. Panels frames to support solar panels.
  3. Poly pipe from pump to water tank

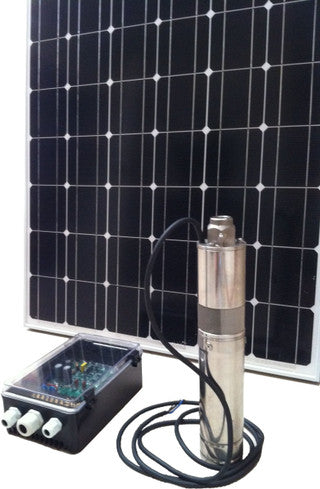

Product Inclusions

  • 2 x 200W mono crystalline A grade solar panels.
  • 3" 500W/48V stainless steel solar pump with 40m fitted power cable.
  • Pump control box
  • One spare helical screw rotor
  • 2 x MC4 extension cable for solar panels connect to control box.
  • 1 x 40m & 1 x 10m combined water sensor (for bore & water tank).
  • User manual.
  • 24 months (Pump & Control Box) back to base (Sydney) warranty.
  • Free delivery in Australia.

Product Specifications

Pump Specifications:

  • Pump Power: 500W/48VDC
  • Pump Type: Helical Screw Rotor
  • Outlet: 3/4"
  • Weight: 13kg
  • Dimension: 76mm x 450mm
  • Submerge Depth: <40m

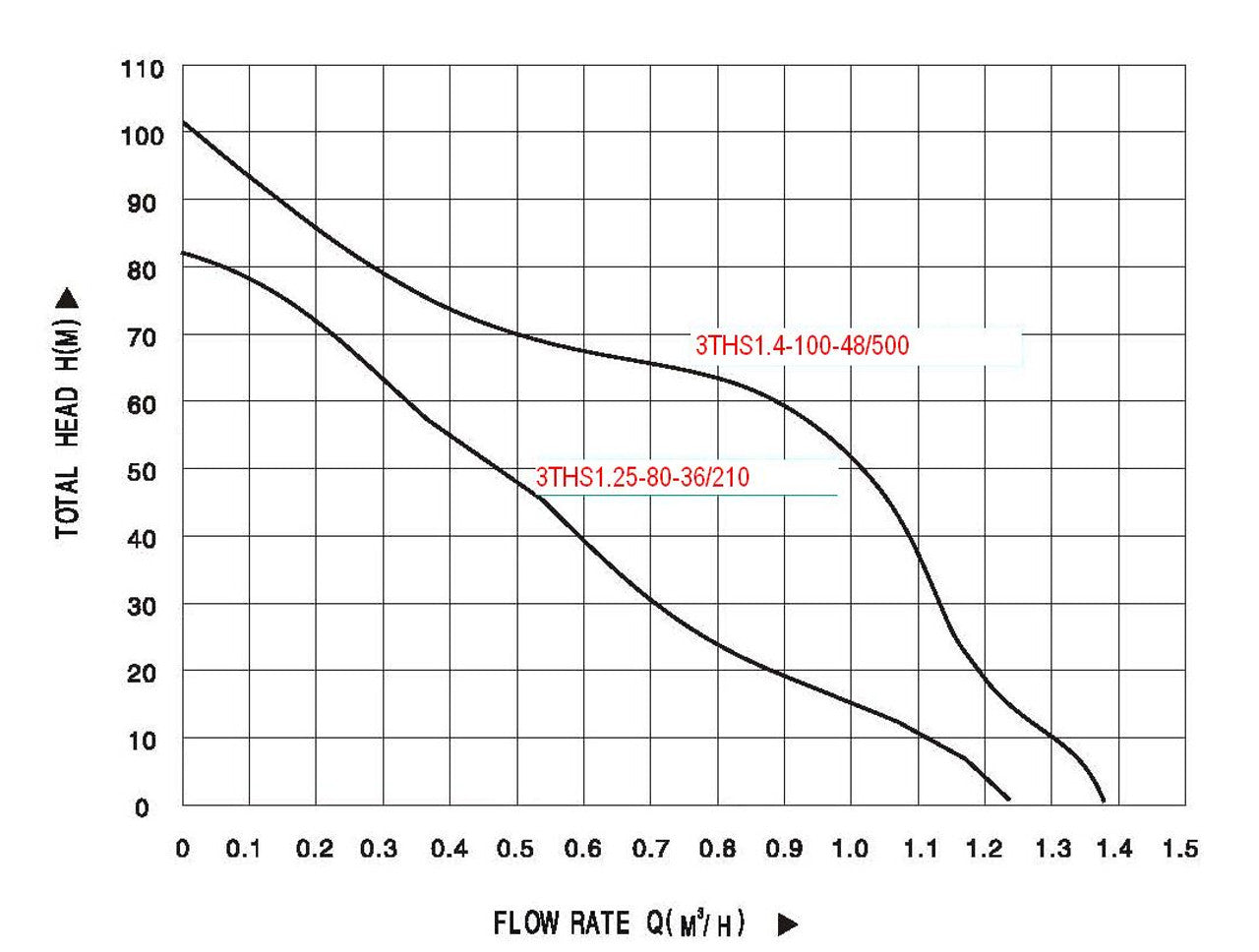

Pump recommended NO more than 40m dynamic head.

Head      L/Min    Gal/Hr
40m           8L           106
30m           12L          160

20m           18L          240
10m           22L          294

Pump Controller Specifications:

  • Water level control of tank and bore by sensors
  • Motor speed adjustable
  • Low power protection
  • Solar and/or batteries power input option
  • MPPT Maximum Power Point Tracking system, Allow input power voltage up to 100V/DC (solar panel open circuit maximum voltage)

Solar Panel Specifications:

  • 200W solar panel dimension: 1580 x 808 x 35mm.
  • Weight: 16Kg.

Options

240V/AC to 48V/Dc Converter
