4" 4000W 415V Submersible Bore Pump DG-14 & Free Delivery

4" 4000W 415V Submersible Bore Pump DG-14 & Free Delivery

$1,140.00 AUD
$1,140.00 AUD
Sale Sold out

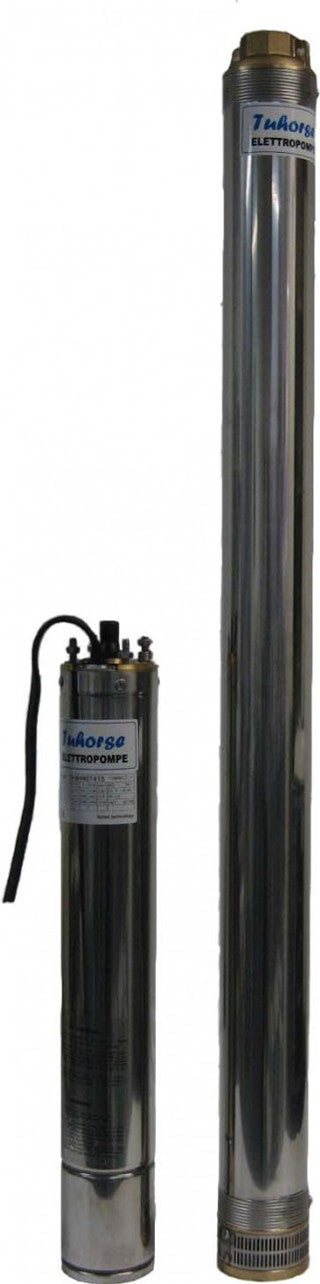

Submersible bore pump package includes - 5.5HP 415V/50Hz motor, DG-14/5.5HP pump and 5.5HP auto pump control box.

All three-phase submersible bore pumps comes standard with pump auto control box. It can be used with or without control box.

The three phase control box have built in current and voltage gauge, 6 water sensors to detect either bore or tank's water level.

Product Inclusions

  • Power: 5.5HP/4000W
  • Model: DG-14
  • Voltage: 3 Phase 415V/50Hz
  • Current: 10.3A
  • Max Head: 88m
  • Max Flow: 333L/min or 20,000L/hr
  • Inlet/Outlet: 2"
  • Weight: 39Kg
  • Pump Dimension: 1846mm x 95mm
  • Pump Cable: 2m
  • Warranty: 12 months return to base warranty in Australia.

Product Specifications

Pump Specifications:

  • Pump diameter is 4"/100mm.
  • It is suitable for a 5" or large bore well.
  • Designed for domestic clean water use and suited for shallow wells and not for large water flow varying from 5m deep to 70m head.
  • Maximum delivery - 20,000L/hr water.

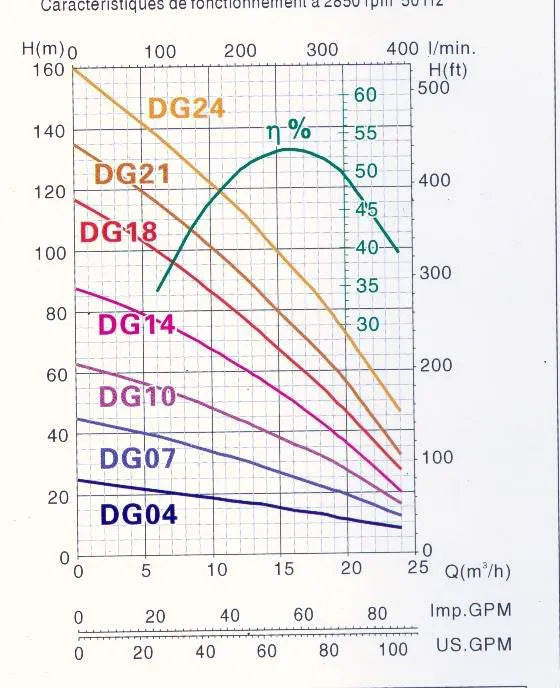

Head             L/Min
72m                100L
66m               150L
60m              200L
56m               233L
50m               267L

43m               300L
5-41m            333L

Pump Auto Control
Box

3 Phase Pump Control Box
