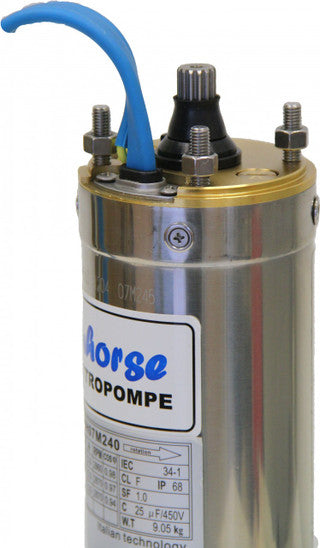

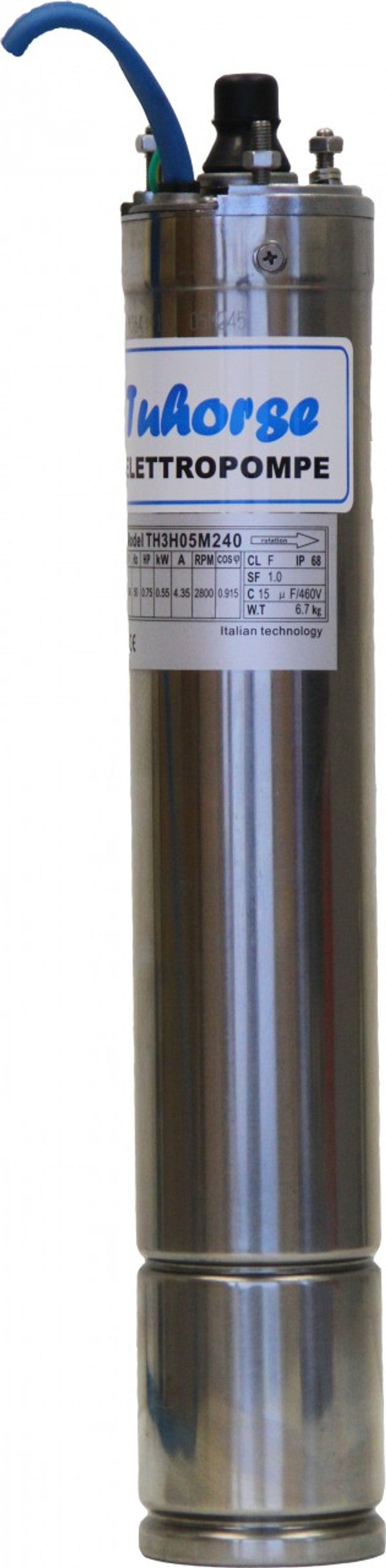

4" 2HP 1.5kW 240V Motor Only & Free Delivery

4" 2HP 1.5kW 240V Motor Only & Free Delivery

$495.00 AUD
$495.00 AUD
Sale Sold out
  • Conform to international standard of IEC34-ICE, whole blocked asynchronous motor squirrel cage rotor.
  • Outer shell, shaft and bottom made of stainless steel 304.
  • Brass alloy or Nickel plated cast-iron upper bracket.
  • Italian Mechanical Seal
  • Swedish bearing or equivalent products can undertake higher thrust load.
  • Pressure automatic adjusting device made of oil and waterproof reformed butyl rubber.
  • Flange connector conforms to NEMA standard.
  • Lacquer-coated wire conforms to US standard of NEMA MW37-C.
  • Motor cooling oil is to RoHS standard.

Product Specifications

Motor Specification:

  • Power: 4" / 2HP / 1.5kW
  • Voltage: Single Phase 240V/50Hz
  • Current: 10.6A
  • RPM: 2850
  • Dimension:  95mm x 435mm
  • Power Cable: 2m flat W/Proof
  • Weight: 12kg
  • Degree of Protection: IP68
  • Insulation: Class B
  • Water PH: 6.5 - 8.0
  • Max starts per hour: 30
  • Max Submerged: 150m
  • Overload Trip Time: <10 Sec (when load is 5 times of rating current)
