4" 4000W 415V Submersible Bore Pump BF-32 & Free Delivery

4" 4000W 415V Submersible Bore Pump BF-32 & Free Delivery

$1,140.00 AUD
$1,140.00 AUD
Sale Sold out

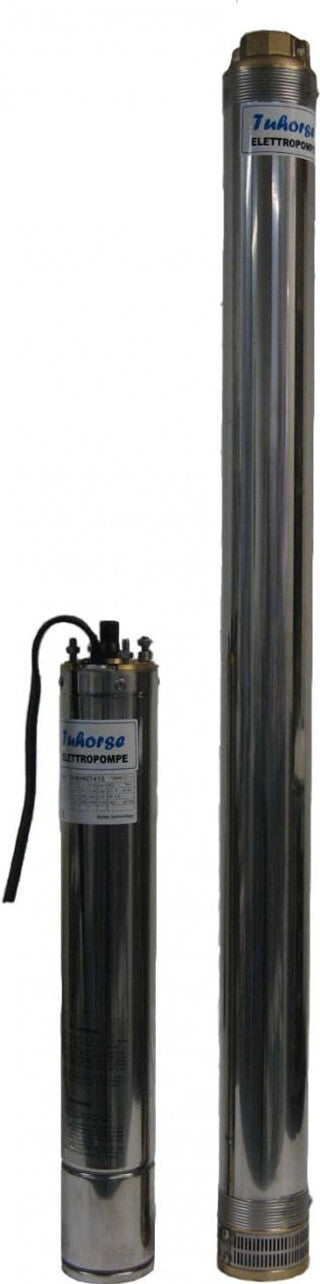

Submersible bore pump package includes - 5.5HP 415V/50Hz motor, BF-32/5.5HP pump and 5.5HP auto pump control box.

All three-phase submersible bore pumps comes standard with pump auto control box. It can be used with or without control box.

The three phase control box have built in current and voltage gauge, 6 water sensors to detect either bore or tank's water level.

Product Inclusions

  • Power: 5.5HP/4000W
  • Model: BF-32
  • Voltage: 3 Phase 415V/50Hz
  • Current: 10.3A
  • Max Head: 232m
  • Max Flow: 117L/min or 7000L/hr
  • Inlet/Outlet: 1 1/2"
  • Weight: 42Kg
  • Pump Dimension: 2076mm x 95mm
  • Pump Cable: 2m
  • Warranty: 12 months return to base warranty in Australia.

Product Specifications

Pump Specifications:

  • Pump diameter is 4"/100mm.
  • It is suitable for a 5" or large bore well.
  • Designed for domestic clean water use and suited for shallow wells and not for large water flow varying from 10m deep to 220m head.
  • Maximum delivery - 7000L/hr water.

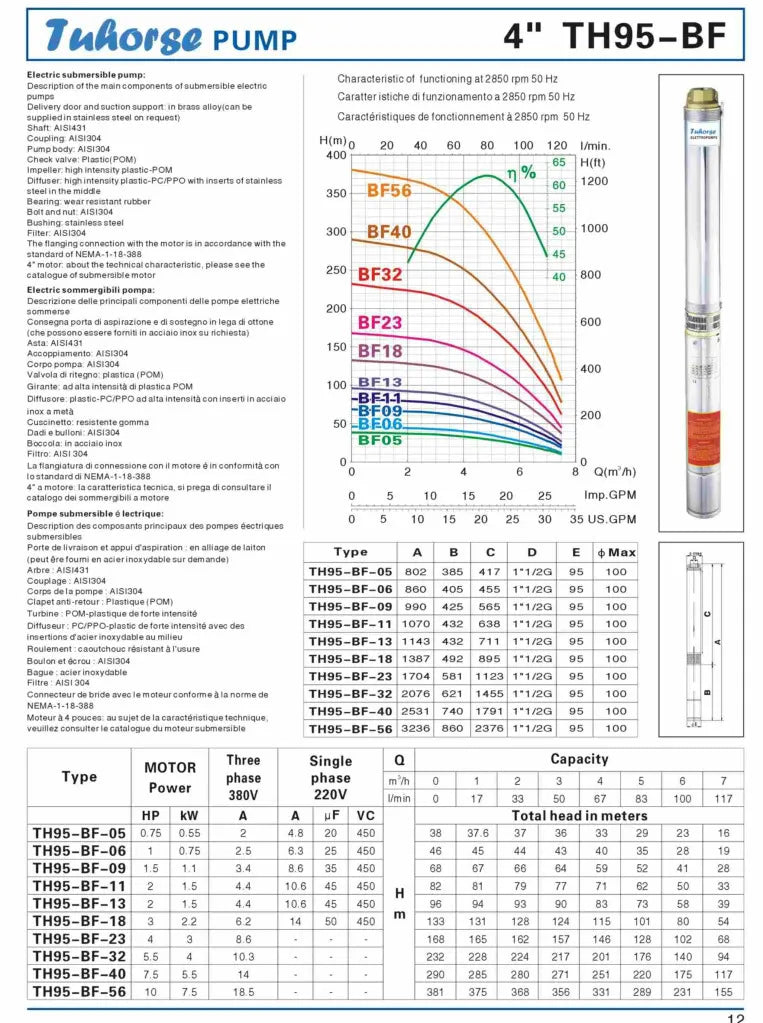

Head              L/Min
228m                 17L
224m                33L
217m                 50L
201m                 67L
176m                 83L
140m                100L
5-130m             117L

Pump Control Box

3 Phase Pump Control Box
