4" 2200W 415V Submersible Bore Pump BF-18 & Free Delivery

4" 2200W 415V Submersible Bore Pump BF-18 & Free Delivery

$800.00 AUD
$800.00 AUD
Sale Sold out

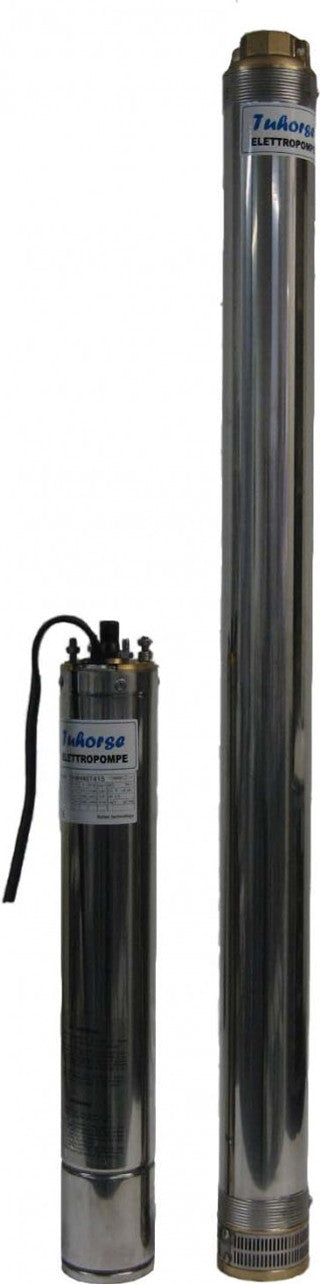

Submersible bore pump package includes - 3HP 415V/50Hz motor, BF-18/3HP Pump and 3HP Auto Pump Control Box.

All three-phase submersible bore pumps comes standard with auto pump control box. It can be used with or without control box.

The three phase control box have built in current and voltage gauge, 6 water sensors to detect either bore or tank's water level.

Product Inclusions

  • Power: 3HP/2200W
  • Model: BF-18
  • Voltage: 3 Phase 415V/50Hz
  • Current: 6.2A
  • Max Head: 133m
  • Max Flow: 117L/min or 7000L/hr
  • Inlet/Outlet: 1 1/2"
  • Weight: 29Kg
  • Pump Dimension: 1387mm x 95mm
  • Pump Cable: 3m
  • Warranty: 12 months return to base warranty in Australia.

Product Specifications

Pump Specifications:

  • Pump diameter is 4"/100mm.
  • It is suitable for a 5" or large bore well.
  • Designed for domestic clean water use and suited for shallow wells and not for large water flow varying from 5m deep to 130m head.
  • Maximum delivery - 7000L/hr water.

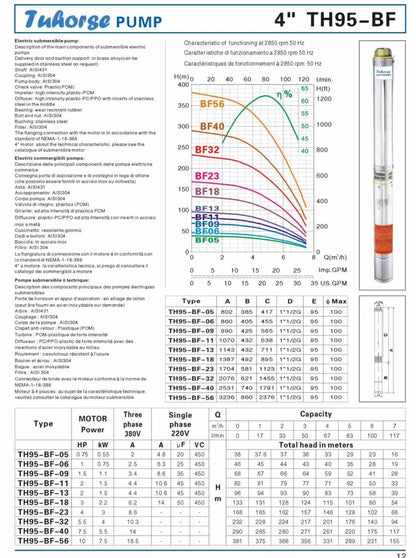

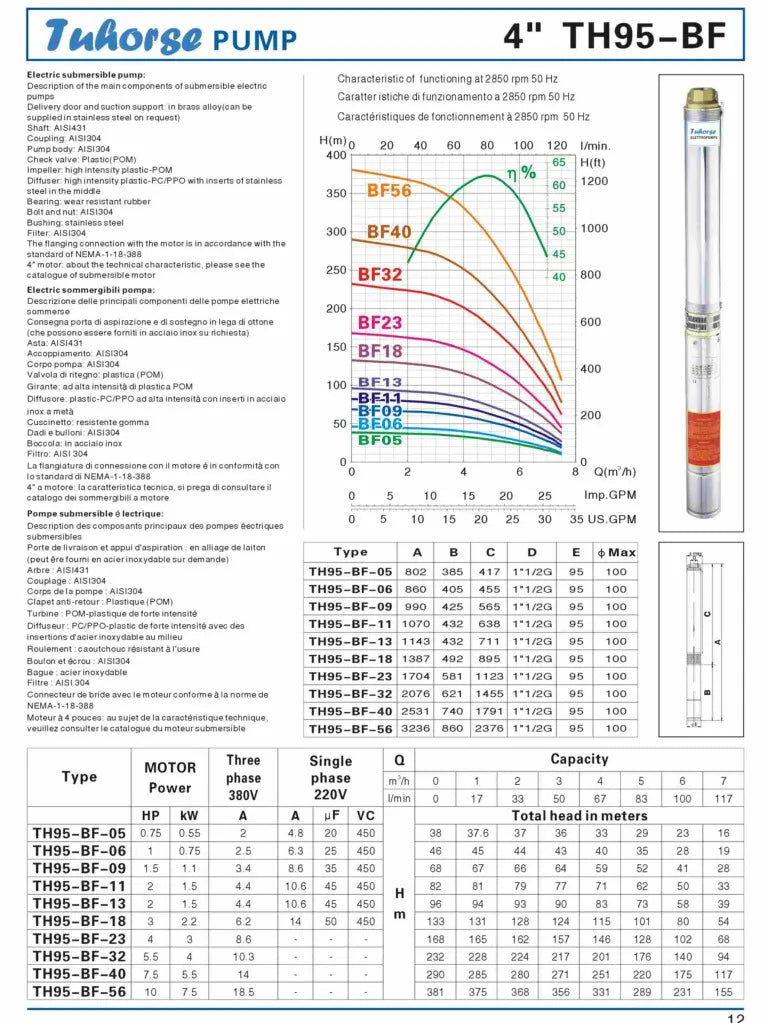

Head              L/Min
131m                 17L
128m                33L
124m                50L
115m                 67L
101m                 83L
80m                 100L
5-79m              117L
Pump Control Box
