3" 550W 240V Submersible Bore Pump T-22 & Free Delivery

3" 550W 240V Submersible Bore Pump T-22 & Free Delivery

$555.00 AUD
$555.00 AUD
Sale Sold out

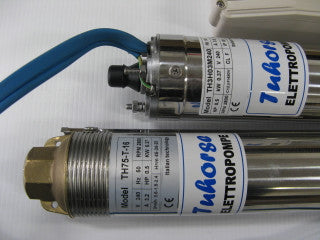

3" 0.75HP 240V/50Hz Motor, TH-T-22/0.75HP Pump and 0.75HP Starter Box.

    Product Inclusions

    • Power: 0.75HP/550W
    • Model: T-22
    • Voltage: Single Phase 240V/50Hz
    • Current: 4.4A
    • Max Head: 70m
    • Max Flow: 50L/min or 3000L/hr
    • Inlet/Outlet: 1"
    • Weight: 12Kg
    • Pump Dimension: 1161mm x 75mm
    • Warranty: 12 months return to base warranty in Australia

    Product Specifications

    Pump Specifications:

    • This Tuhorse pump is suitable for a 3"/78mm or large bore well (this pump actual diameter is 75mm).
    • Designed for domestic clean water use.
    • It is best when depth is between 20m-65m.
    • It also can be used to pump water from dams or rivers.
    • Max delivery - 3,000L/hr.

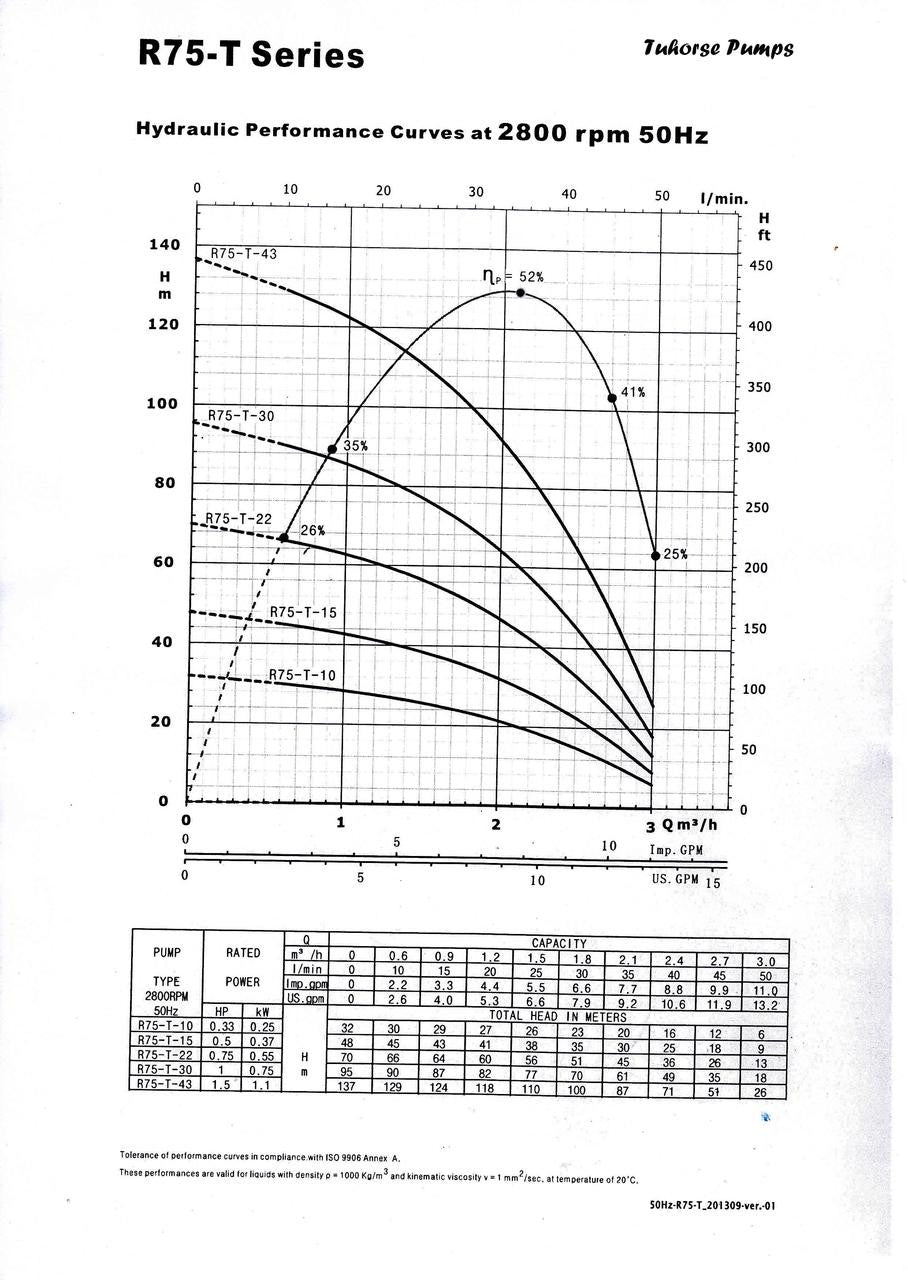

    Head      L/Min
    66m          10L
    60m          20L
    51m           30L
    45m          35L
    36m          40L

    26m          45L
    13m           50L

    Options

    Auto Starter Box Option

    • This submersible bore pump is packaged with a starter box.
    • It can be upgraded to Auto Control Box with 6 water sensors for detect bore or tank's water level for $95 if ordered with pump.

    Cable Selection

    Recommended Power Cable Size: -

    0 - 75m = 3C & Earth x 2.5mm
