10HP Three Phase Bore Auto Pump Control Box & Free Delivery

10HP Three Phase Bore Auto Pump Control Box & Free Delivery

$320.00 AUD
$320.00 AUD
Sale Sold out

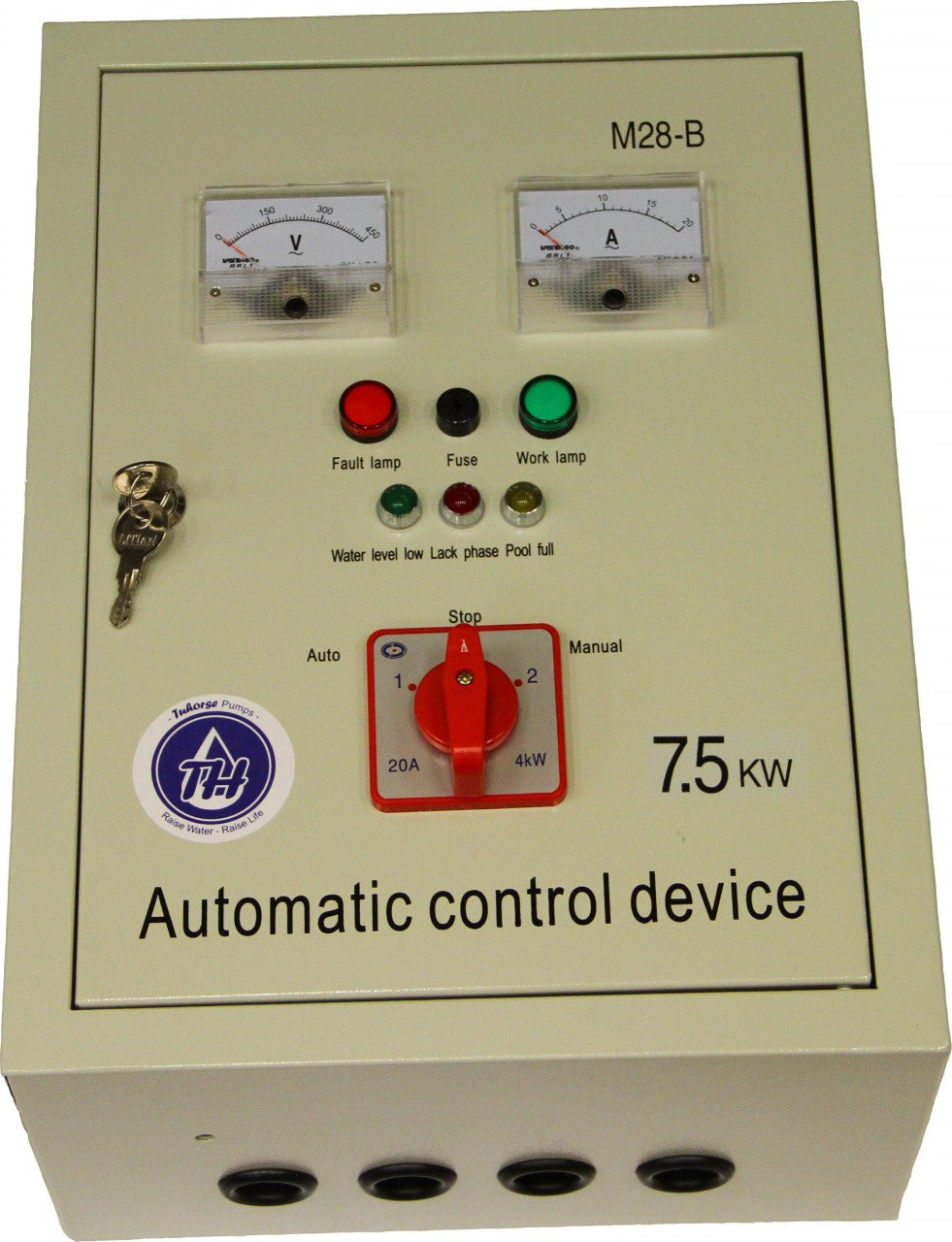

  • This is an automatic control box which is designed for 415V/50Hz three phase pumps.
  • The controller automatically controls the pump motor as well as providing comprehensive pump protection and phase failure protection. It works in either auto or manual way. The automatic control box has an auto/manual switch. When switch to “manual”. The control box will work like starter a box.
  • Among these 6 probes, 3 are for monitoring the well's water level (up, mid and low) and the other 3 for monitoring the storage tank's water level. You can bypass either monitoring or both and can be used as a manual control box when needed.  With the automatic box installed, the pump will turn on and off automatically according to the water levels of both the tank and the well. This is extremely important when using it in a well with limited water supply, as the pump only should be operating when it is submersed in the water to get enough cooling and lubricating by the water going through it.

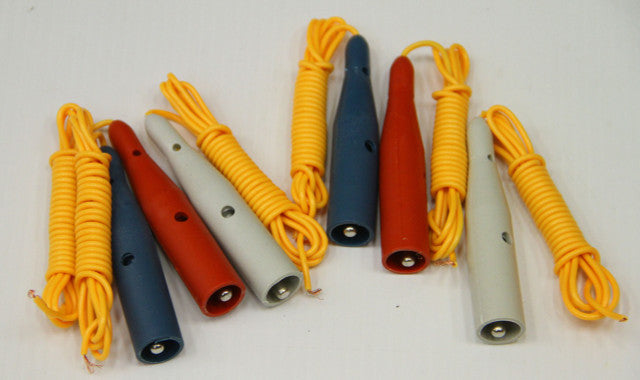

  • The box has metal casing, comes with a lock, 2 keys, voltage & current meters and 6 water probes.
  • It is compatible with all three phase pumps in the market that required auto switch pump on/off by water sensors.
  • It can be installed indoor or outdoor.

Product Specifications

Control Box Specifications:

  • Power: 10HP / 7.5kW
  • Rated Voltage: 3 phase 415V/50Hz
  • Rated Current: 18.5A
  • Water Sensors Voltage: 10V-12V
  • Control Switch: Auto/Manual
